Module Power Supply 4Channel 3.3V/5V logic AC Dimming Module 4Channel 3.3V/5V Logic
$10.26
Price includes service fee; after ordering, we source and consolidate shipping from factories.
Estimated domestic shipping ≈ $0.45(1 pieces estimated, actual cost determined at checkout)
Specifications
Quantity
Wholesale tiered pricing (better for larger quantities)
1–99 pcs$10.26/ piece
100–999 pcs$10.11/ piece
≥1000 pcs$9.95/ piece
Total 1 specifications
厂家直销，种类齐全，量大议价优惠，货期稳定不耽误！！

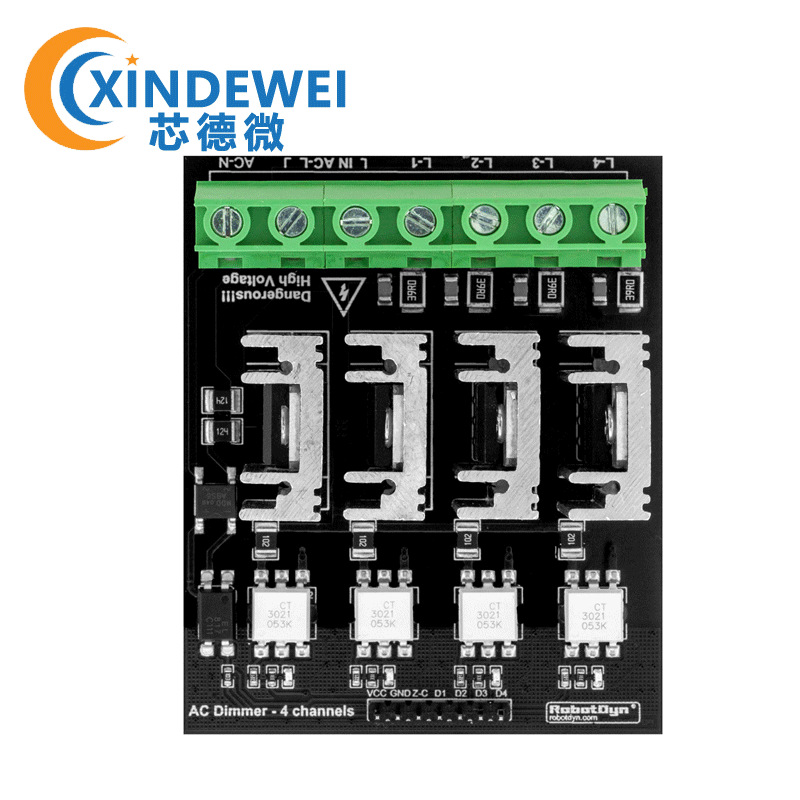

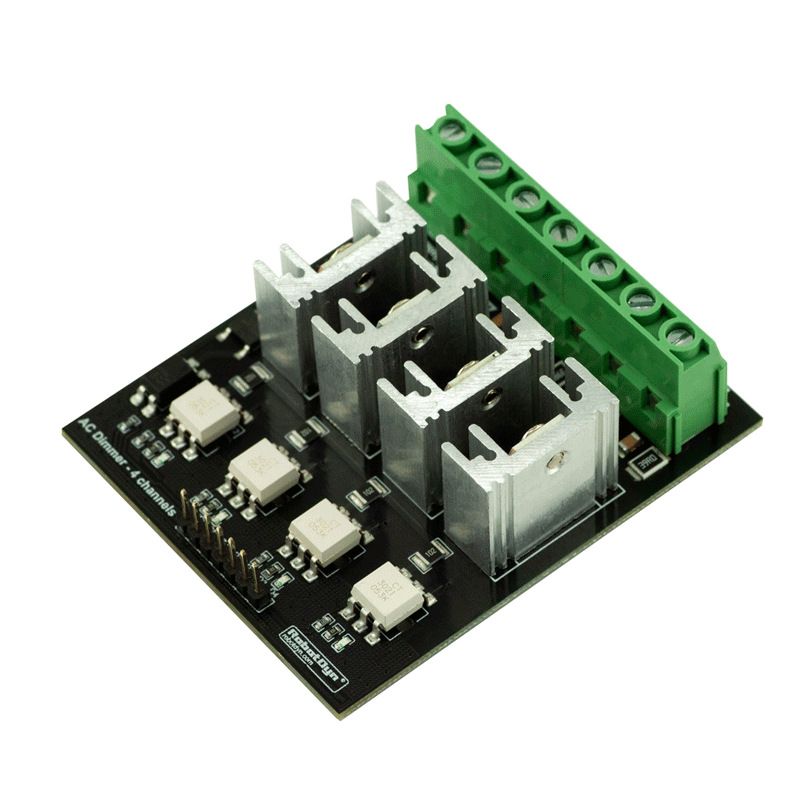

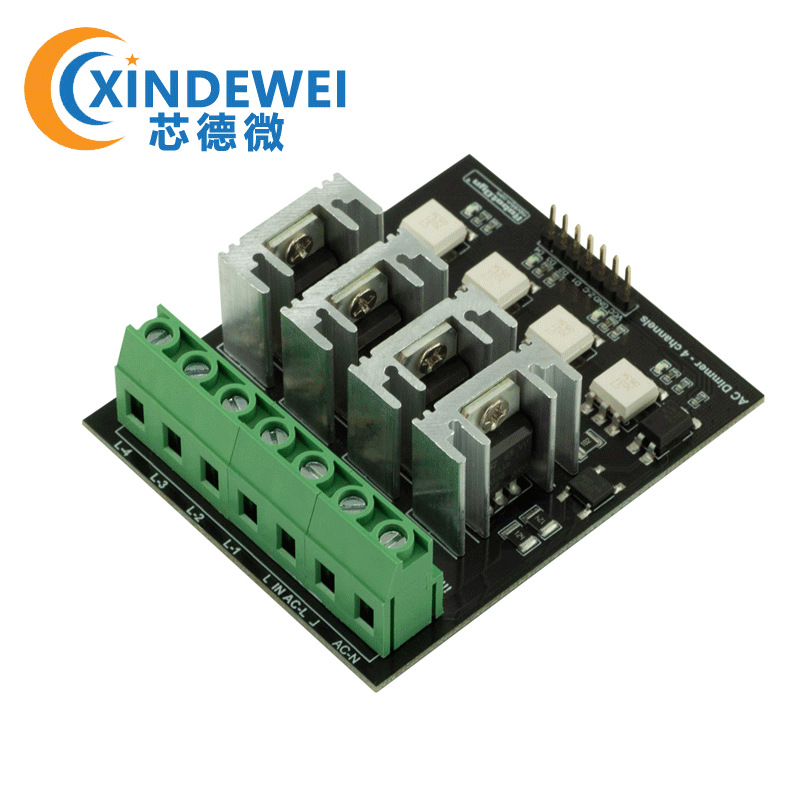

AC Light Dimmer Module for PWM control, 4 Channels, 3.3V/5V logic, AC 50/60hz, 220V/110V
Product Overview
This one is the biggest AC Dimmer, we have now. It’s just like other 2 variations, but has 4 channels. So all of your lamps, elements, fans, etc can be connected here in 1 device. And it will smoothly change the light brightness, turn ON/OFF electronic devices at the rate you want.
In the tutorial, you can see a simple example of what can be done with it.
Check out other options:
Specification
| Power | up to 220V (5A~10A) |
| AC frequency | 50/60 Hz |
| TRIAC | BTA16 — 600B |
| Isolation | Optocoupler |
| Logic level | 3.3V/5V |
| Zero point | Logic level |
| Modulation (DIM/PSM) | logic level ON/OFF TRIAC |
| Signal current | >10mA |
| Environment: |
|
| ROHS3 | Compliant |

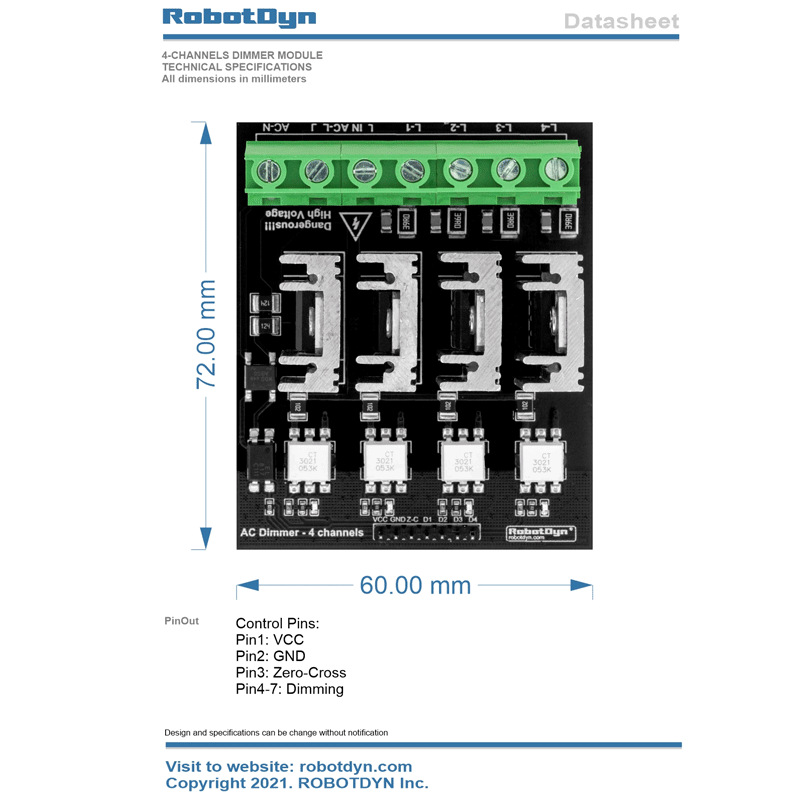

Documents
Documents (Instruction manuals, schematics, etc), links:
- https://robotdyn.com/Mod-Dimmer-5A-4L-EN —English;
- https://robotdyn.ru/catalog/modules/Mod-Dimmer-5A-4L-RU — Russia.
Library and sketch examples:
- Dimmer Library (RBDdimmer.h): https://github.com/RobotDynOfficial/RBDDimmer
- Discussion and support on FB: https://www.facebook.com/342167936199454/posts/623343184748593/
- Video channel: https://www.youtube.com/channel/UCh3PdwD_x7tg5sUUt3EfpfQ/videos
